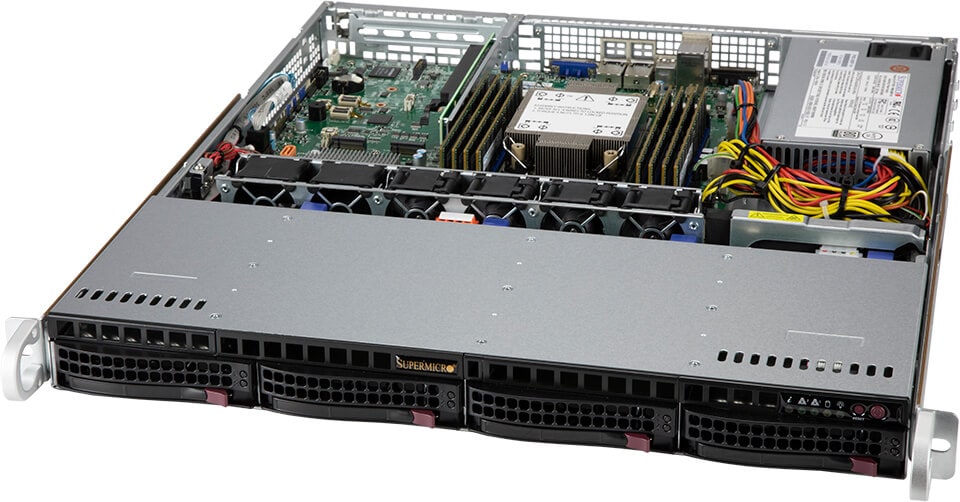

System SYS-510P-MR

Name: Supermicro System SYS-510P-MR
Brand: Supermicro
SKU: SYS-510P-MR
Price: 1443.53 EUR
Availability: InStock

1U - Support Intel® 3rd Gen Xeon® Scalable ProcessorsSingle Socket LGA 4189 (Socket P+) supportedTDP up to 220W;

Loading price...

In Stock

Quantity

Supermicro Product ID: SYS-510P-MR

Loading Specifications...

Specifications

Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors. Up to 220W TDP.
8 DIMMs; Supports 3DS DDR4-3200: RDIMM/LRDIMM/Intel® Intel® DCPMM
1 PCIe 4.0 x16 (FHHL) slot
Intel® Ethernet Controller i350 2x 1GbE RJ45
4x hot-swap 3.5'' Hybrid SATA3/NVMe drive bays, SAS3 with additional SAS controller card; Onboard 2x NVMe/SATA M.2
Single Platinum 500W Power Supply

...

Product SKUs
SuperServer SYS-510P-M

Motherboard
Super X12SPO-F

Processor
CPU	Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
Core Count	Up to 36C/72T; Up to 54MB Cache
Note	Supports up to 220W TDP CPUs (Air Cooled)

GPU
Max GPU Count	Up to 1 single-width GPU(s)
Supported GPU	NVIDIA PCIe: T400 View GPU Options

System Memory
Memory	Slot Count: 8 DIMM slots Max Memory (1DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM Supports Intel® Optane™ persistent memory 200 series View Memory Options
Memory Voltage	1.2V

On-Board Devices
SATA	SATA (6Gbps) ; RAID 0/1/5/10 support
NVMe	NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required) View NVMe Options
Chipset	Intel® C621A
Network Connectivity	2 RJ45 1GbE with Intel® I350 View AOC Options

Input / Output
LAN	2 RJ45 1 GbE LAN port(s) 1 RJ45 1 GbE Dedicated IPMI LAN port(s) (IPMI shared on LAN port 1)
USB	4 USB 2.0 port(s) (header) 2 USB 3.2 Gen1 Type-A port(s) (rear) 2 USB 2.0 Type-A port(s) (rear) 2 USB 3.2 Gen1 port(s) (Header) 1 USB 3.2 Gen1 Type-A port(s) (Header)
Video	1 VGA port(s)
Serial	1 COM port(s) (Rear) 1 COM port(s) (Header)
DOM	2 SuperDOM (Disk on Module) port(s) with built-in power
TPM	1 TPM header

System BIOS
BIOS Type	AMI 32MB SPI Flash EEPROM

Management
Software	SuperCloud Composer Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	ACPI/APM Power Management

Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown

PC Health Monitoring
CPU	Monitors for CPU Cores, Chipset Voltages, Memory 7+1 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
