Supermicro

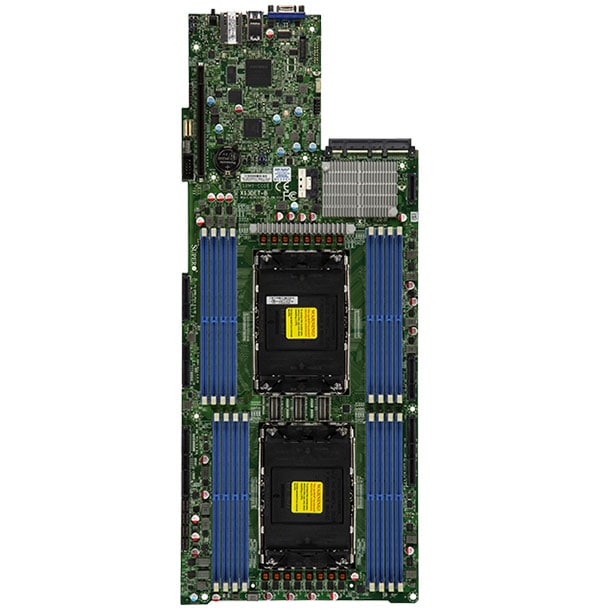

Motherboard X13DET-B Dual 5th/4th Gen Intel® Xeon® Scalable processors

5th/4th Gen Intel® Xeon® Scalable processors and Intel® Xeon® Max series processors - Proprietary - Intel® C741 - Dual - Up to 350W TDP - DDR5 3DS RDIMM4TB - PCI-E 3.0
Loading price...
Loading price...
In Stock
Minimaal 1 jaar Carry-in-garantie voor servers

Supermicro Product ID: MBD-X13DET-B

Need Assistance? Contact our experts

Available Monday to Friday, 09:00 - 17:30 hours

Start Chat
Loading: Specifications...
Specifications
P/N: X13DET-B

Key Features


  1. Support CXL 1.0, 1.1
  2. 5th/4th Gen Intel® Xeon® Scalable processors, Dual Socket LGA-4677 (Socket E) , CPU TDP supports up to 350W TDP
  3. Intel C741® Chipset
  4. Up to 4TB 3DS ECC RDIMM, DDR5-5600MT/s in 16 DIMM slots
  5. 2 PCIe 5.0 x16 slots supported by CPU1 (Slot1, Slot2)
  6. 1 PCIe 5.0 x16 slots supported by CPU2 (SXB1) for NVMe, SATA, SAS storage card(s)
  7. 1 PCIe 5.0 x8 for 2 NVMe M.2 connections on AOC supported by CPU1 (SXB5)
  8. 2 PCIe 5.0 x8 slots supported by CPU1 (SXB3, SXB4) for SAS 3.0, NVMe storage card(s)
  9. 3 PCIe 5.0 x8 connector supported by CPU1 and CPU2 (NS1, NS2, NS3) for NVMe storage card(s)
  10. 2 SATA headers support 12 SATA 3.0 connections
  11. UID/BMC Reset Switch and UID_LED/BMC LED Indicator
  12. Support for TPM (JTPM1)
...
...

Optimized Servers


SYS-221BT-HNR SYS-221BT-HNTR SYS-221BT-HNC8R SYS-221BT-HNC9R SYS-221BT-DNTR SYS-221BT-DNC8R SYS-621BT-HNTR SYS-621BT-HNC8R SYS-621BT-DNTR SYS-621BT-DNC8R
Product SKUs
MBD-X13DET-B
Physical Stats
Form Factor
  • Proprietary
Dimension
  • 7.62" x 18.8" (19.36cm x 47.75cm)
Processor
CPU
  • 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors and Intel® Xeon® Max Series processors
  • Dual Socket E (LGA-1700) supported, CPU TDP supports Up to 350W TDP
  • SP XCC, SP MCC, and MAX Series (HBM) SKUs are supported
Core
  • Up to 64 cores
System Memory
Memory Capacity
  • 16 DIMM slots
  • Up to 4TB 3DS ECC RDIMM, DDR5-5600MT/s
Memory Type
  • 5600/5200/4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 5600MT/s(1DPC)
DIMM Sizes
  • 16GB, 32GB, 64GB, 96(XCC Only)GB, 128GB, 256GB
  • RDIMM: Up to 256GB
Memory Voltage
  • 1.1V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • Intel® C741
SATA
  • Intel® C741 controller for 4 SATA3 (6 Gbps) ports
  • Intel® C741 controller for 8 SATA3 (6 Gbps) ports
Network Controllers
  • AIOM for LAN
Input / Output
USB
  • 2 USB 3 port(s) (2 rear type A)
Video Output
  • 1 VGA D-Sub Connector port(s)
Serial Port
  • 1 COM Port(s) (1 header)
TPM
  • 1 TPM Header
Others
  • 1 AIOM PCIe 5.0 x16 (10Gbps)
Expansion Slots
PCIe
  • 1 PCIe 5.0 x16 for Left riser card support,
  • 1 PCIe 5.0 x16 for Right riser card support,
  • 1 PCIe 5.0 x8 connector for SMC add-on cards,
  • 2 PCIe 5.0 x8 Proprietary Storage adapter Slot,
  • 3 PCIe 5.0 x8, NS-HD connector,
  • 1 PCIe 5.0 x16 AIOM Networking Slot, AIOM slots Superset of OCP 3.0 Expansion
M.2
  • M.2 Interface: 2 PCIe 3.0 x4
  • Form Factor: 2280, 22110
  • Key: M-Key
  • SXB5 supports 2 M.2 devices in 22110 form factor with 2x PCIe 4.0x4, or 2 M.2 devices in 2280 form factor with 2x PCIe 3.0x4
System BIOS
BIOS Type
  • AMI 32MB AMI UEFI
BIOS Features
  • ACPI 6.4
  • SMBIOS 2.8/3.5
  • UEFI 2.8A
  • Plug and Play (PnP)
  • PCI FW 3.2
Management
Software
  • Redfish API, Supermicro Server Manager (SSM), Supermicro Power Manager (SPM), Supermicro Update Manager (SUM), Supermicro SuperDoctor® 5 (SD5), Super Diagnostics Offline (SDO), KVM with dedicated LAN , IPMI 2.0
PC Health Monitoring
Voltage
  • VBAT, System level control, Supports system management utility, Monitors CPU voltages, +5V, +3.3V, +12V, 2 fans with tachometer status monitoring, +12V Standby
FAN
  • 2x 4-pin fan headers (up to 2 fans)
  • Node Manager Support
Other Features
  • UID, M.2 NGFF connector, Control of power-on for recovery from AC power loss, ACPI power management, CPU thermal trip support, Temperature of CPU, PCH, System, DIMM, Peripheral, PECI, Chipset Voltage, UID/Remote UID, CPU / System Overheat LED, Monitoring for CPU and chassis environment
Operating Environment
Operating Temperature Range
  • 10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
