Supermicro

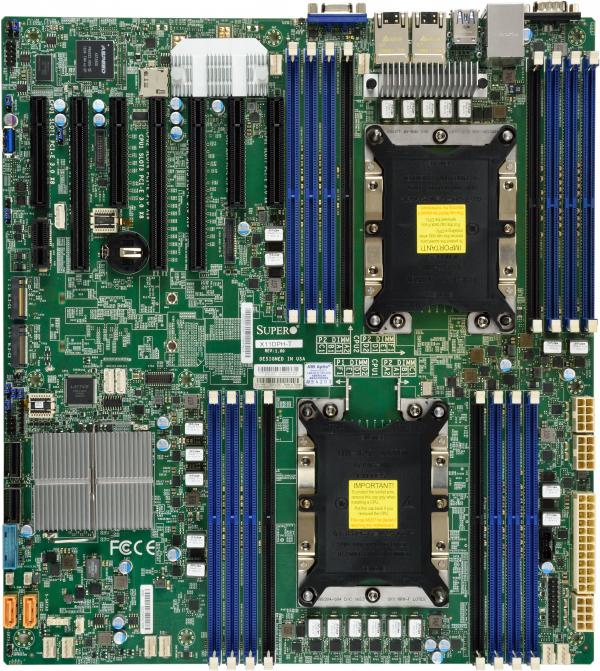

Motherboard X11DPH-i Dual 2nd Gen Intel® Xeon® Scalable Processor

2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors - E-ATX - Intel® C621 - Dual - Up to 205W TDP - DDR4 3DS RDIMM2TB - PCI-E 3.0 3 x164 x8
Loading price...
Loading price...
Click here for availability
Minimaal 1 jaar Carry-in-garantie voor servers

Supermicro Product ID: MBD-X11DPH-i

Need Assistance? Contact our experts

Available Monday to Friday, 09:00 - 17:30 hours

Start Chat
Loading: Specifications...
Specifications
P/N: X11DPH-i

Key Features


  1. 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors,
    Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 3 UPI up to 10.4 GT/s
  2. Intel® C621
  3. Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz
    Or 2TB DCPMM, DDR4-2666MHz, in 16 DIMM slots;
    Up to 2TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only);

  4. 3 PCIe 3.0 x16,
    4 PCIe 3.0 x8
    M.2 Interface: 2 PCIe 3.0 x4
    M.2 Form Factor: 2242/2260/2280/22110
    M.2 Key: M-Key (RAID 0,1 support)


  5. Intel® C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  6. Dual LAN with 1GbE with Intel® X722 + Marvell 88E1512
  7. 1 VGA port
...
...
Product SKUs
MBD-X11DPH-i
Physical Stats
Form Factor
  • E-ATX
Dimension
  • 12" x 13" (30.48cm x 33.02cm)
Processor
CPU
  • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors
  • Dual Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 205W TDP, 3 UPI up to 10.4 GT/s
System Memory
Memory Capacity
  • 16 DIMM slots
  • Up to 2TB Intel® Optane™ Persistent Memory 200 Series, DDR4-2666MT/s
  • Up to 4TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 4TB 3DS ECC RDIMM, DDR4-2933MT/s
Memory Type
  • 2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
DIMM Sizes
  • LRDIMM: 64GB
  • RDIMM: 64GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • Intel® C621
SATA
  • Intel® C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
  • ASPEED AST2500
Network Controllers
  • Dual LAN with 1GbE with Intel® X722 + Marvell 88E1512
Input / Output
SATA
  • 10 SATA3 (6Gbps) port(s)
LAN
  • 2 1GbE LAN ports
USB
  • 7 USB 3.2 Gen1 port(s) (2 via header; 4 rear; 1 type A)
Video Output
  • 1 VGA port(s)
Serial Port
  • 1 COM Port(s) (1 rear)
DOM
  • 2 SATA DOM (Disk on Module) power connector support
TPM
  • 1 TPM Header
Expansion Slots
PCIe
  • 3 PCIe 3.0 x16,
  • 4 PCIe 3.0 x8
M.2
  • M.2 Interface: 2 PCIe 3.0 x4, RAID 0,1
  • Form Factor: 2242/2260/2280/22110
  • Key: M-Key
System BIOS
BIOS Type
  • AMI UEFI
Management
Software
  • SuperDoctor® 5, SUM, KVM with dedicated LAN, SPM, Intel® Node Manager, SSM, IPMI2.0, Watchdog
PC Health Monitoring
Voltage
  • Monitors CPU voltages, Chipset Voltage, 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, +1.8V, Memory Voltages
LED
  • UID/Remote UID
  • Power LED
  • BMC/IPMI Heartbeat LED
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • Thermal Control for 8 Fan Connectors
FAN
  • 8x 4-pin fan headers (up to 8 fans)
  • PWM fan speed control
Other Features
  • WOL, UID, RoHS, CPU thermal trip support for processor protection, Chassis intrusion header, Chassis intrusion detection, ATX Power connector, ACPI power management, 8-pin 12v DC power connector, SDDC, NCSI header
Operating Environment
Operating Temperature Range
  • 10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
