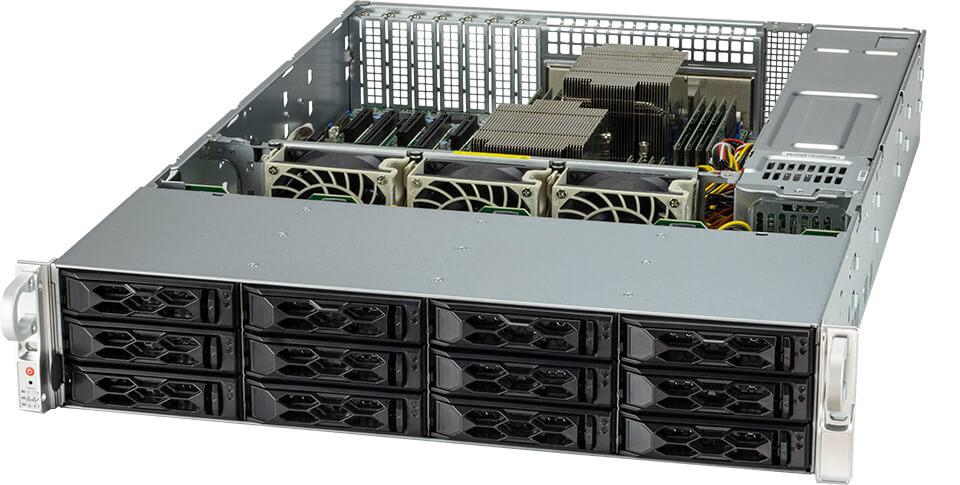

AS -2024S-TR | 2U | SuperServer

AS - 2024S-TR | 2U | SuperServer | Products | Supermicro - AS - 2024S-TR - SS2024S-TR - 2U - Mainstream - H12 - System - Rackmount Servers - 2U Dual Processor - rackmount - 2u-dp
Loading price...
Loading price...
Try before you buy
Click here for availability
Minimaal 1 jaar Carry-in-garantie voor servers

Supermicro Product ID: AS-2024S-TR

Need Assistance? Contact our experts

Available Monday to Friday, 09:00 - 17:30 hours

Start Chat
Loading: Specifications...
Specifications

Key Applications

  • Virtualization
  • Enterprise Server
  • Data Center Optimized
  • Application and data serving
  • Model analysis
  • Compute Intensive Applications

Key Features

  1. Dual AMD EPYC™ 7003/7002 Series Processors ;Supports Up to 240W CPU TDP;
  2. AMD® SP3
  3. Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz in 16 DIMMS
    • 3 PCIe 4.0 x16 Low Profile (LP);
    • 3 PCIe 4.0 x8 Low Profile (LP)
  5. Dual Gigabit LAN
  6. 12 hot-swap 3.5" (Tool-less) or 2.5" (screw) drive bays ;(Default configuration is 8 SATA + 4 NVMe) ; (Up to 12x NVMe drives supported with optional NVMe kit);1 M.2 support: ;- M.2 Interface: PCIe 3.0 x4;- M.2 Form Factor: 2260, 2280, 22110;- M.2 Key: M-Key;
  7. 3 heavy duty Hot-swappable 9.4K RPM Cooling Fans;1 air shroud
  8. 920W Redundant Power Supplies Platinum level
  9. 1 rear VGA, 1 Type A port, 1 COM Port, and 4 USB ports
...
...
Buy Now
AS-2024S-TR
Product SKUs
A+ Server AS -2024S-TR
Motherboard
Super H12DSi-N6
Processor
CPU
  • Dual Socket SP3
  • AMD EPYC™ 7002/7003 Series Processors
Core Count
  • Up to 64C/128T; Up to 256MB Cache per CPU
Note
  • Supports up to 240W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (1DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
  • View Memory Options
Memory Voltage
  • 1.2V
On-Board Devices
Chipset
  • AMD SP3
Network Connectivity
  • 2 RJ45 1GbE
  • View AOC Options
NVMe
  • View NVMe Options
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated IPMI LAN port(s)
  • 2 RJ45 1 GbE LAN port(s)
USB
  • 2 USB 2.0 port(s) (rear)
  • 2 USB 3.0 port(s) (rear)
Video
  • 1 VGA port(s)
DOM
  • 2 SuperDOM (Disk on Module) port(s)
Management
Software
  • SuperCloud Composer
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • ACPI/APM Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 7 Phase-switching voltage regulator
