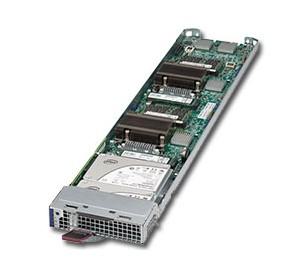

MBI-6219G-T7LX | MicroBlade

Name: Supermicro MBI-6219G-T7LX | MicroBlade
Brand: Supermicro
SKU: MBI-6219G-T7LX
Price: 2338.82 EUR
Availability: InStock

MBI-6219G-T7LX | MicroBlade | Products | Super Micro Computer - Inc. - MBI-6219G-T7LX - 6219G-T7LX - MBI - MicroBlade -

Loading price...

Try before you buy

Click here for availability

Supermicro Product ID: MBI-6219G-T7LX

Need Assistance? Contact our experts

Available Monday to Friday, 09:00 - 17:30 hours

Loading: Specifications...

Specifications

Key Features

392 Skylake UP nodes per 42U Rack

56/28 Skylake-H UP nodes in 6U/3U

2 Independent Nodes per Module;

Each Node Supports:

1. Socket FCBGA 1440;

Intel® Xeon® processor E3-1578L v5

2. Up to 32GB DDR4-2133MHz ECC

SO-DIMM in 2 DIMM slots per node

3. 1x 2.5" SATA3 SSDs, 1x SATADOM,

1x M.2 (80mm PCI-E 3.0 x4),

1x M.2 (110mm PCI-E 3.0 x4)

4. Dual 10GbE LAN ports via Intel

X710-BM2

5. Dedicated LAN supports IPMI 2.0


Processor/Cache (per Node)

CPU	Single Socket FCBGA 1440 supports: Intel® Xeon® processor E3-1578L v5 processors CPU TDP up to 45W


System Memory (per Node)

Memory Capacity	Up to 32GB Unbuffered ECC SO-DIMM, in 2 DIMM slots per node
Memory Type	2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 260-pin SO-DIMMs
DIMM Sizes	16GB, 8GB
Memory Voltage	1.2 V


On-Board Devices

Chipset	Intel® C236 chipset
SATA	SATA3 (6Gbps) via chipset
Network Controllers	Dual 10GbE LAN ports Redundant 1GbE SDN switches with 40Gbps/10Gbps uplinks
IPMI	Support for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM)


System BIOS

BIOS Type	AMI UEFI
BIOS Features	ACPI 5.0 DMI 2.3 PCI 3.0 Plug and Play (PnP) SMBIOS 3.0 UEFI 2.3.1
