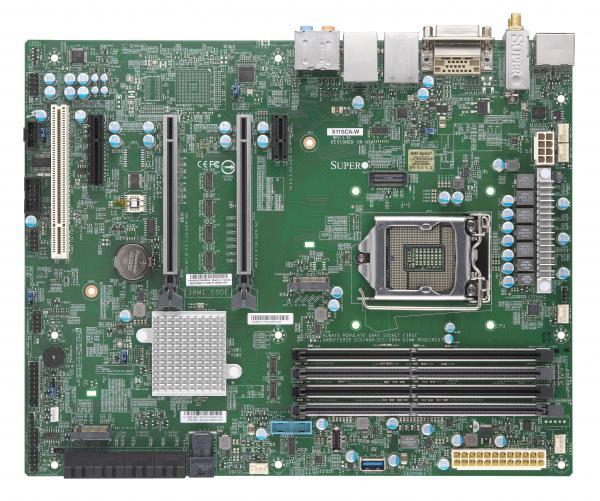

Motherboard X11SCA-W Single Intel® Xeon® E-2100 Processor Intel® Xeon® E-2200 Processor 8th/9th Generation Intel® Core™ i9/Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processor

Intel® Xeon® E-2100 ProcessorIntel® Xeon® E-2200 Processor8th/9th Generation Intel® Core™ i9/Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processor - ATX - Intel® C246 - Single - Up to 95W TDP - DDR4 UDIMM128GB - - PCI-E 3.0 1 x11 x4

Loading price...
Loading price...

In Stock

Supermicro Product ID: MBD-X11SCA-W

Loading Specifications...
Specifications
P/N: X11SCA-W

Key Features


  1. 8th/9th Gen Intel® Core™ i9/i7/i5/i3, Pentium® and Celeron® Processors, Intel® Xeon® E-2100 Processors, Intel® Xeon® E-2200 Processors, Single LGA-1151 (Socket H4), Up to 95W TDP
  2. Intel® C246
  3. Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
  4. 1 PCIe 3.0 x4,
    1 PCIe 3.0 x1,
    2 PCIex16 slots are running at NA/16, or 8/8

    1 - 5V PCI 32bit
    M.2 Interface: 2 PCIe 3.0 x4
    M.2 Form Factor: 2242/2260/2280/22110
    M.2 Key: M-Key
    M.2#1 are shared with PCIex4 slot, M.2#2 is shared with U.2
    U.2 Interface: 1 PCIe 3.0 x4
  5. Intel® C246 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  6. 1 HDMI port, 1 DVI - D port, 1 DP (DisplayPort) port,
    Intel UHD P630 graphic(For CPU Xeon E-21XXGE-22XXG series only)
  7. Single LAN with Intel® Ethernet Controller I210-AT
    Single LAN with Intel® PHY I219LM LAN controller
    Support vPro
    Single LAN with
    Gigabit LAN WiFi + Bluetooth 5.0
...
...
Product SKUs
MBD-X11SCA-W
Physical Stats
Form Factor
  • ATX
Dimension
  • 12" x 9.6" (30.48cm x 24.38cm)
Processor
CPU
  • Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor, 8th/9th Generation Intel® Core™ i9/Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processor
  • Single Socket Socket H4 (LGA-1151) supported, CPU TDP supports Up to 95W TDP
System Memory
Memory Capacity
  • 4 DIMM slots
  • Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2666MT/s
Memory Type
  • 2666/2400/2133/1866/1600 MT/s SDRAM 72-bit, 288-pin
DIMM Sizes
  • 2GB, 4GB, 8GB, 16GB, 32GB
Memory Voltage
  • 1.2V
On-Board Devices
Chipset
  • Intel® C246
SATA
  • Intel® C246 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Audio
  • ALC 888S HD Audio
Network Controllers
  • Single LAN with Intel® Ethernet Controller I210-AT, Support vPro
  • Single LAN
  • Single LAN with Intel® PHY I219LM LAN controller, Gigabit LAN WiFi + Bluetooth 5.0
Input / Output
LAN
  • 2 1GbE LAN ports
USB
  • 2 USB 2.0 port(s) (2 via header)
  • 4 USB 3.1 Gen1 port(s) (2 via header; 2 rear type A)
  • 4 USB 3.1 Gen2 port(s) (1 via header; 1 rear type C; 1 type A; 1 rear type A)
Video Output
  • 1 DP (DisplayPort) port(s), 1 HDMI port(s), 1 DVI - D port(s)
Serial Port
  • 1 COM Port(s) (1 header)
DOM
  • 1 SATA DOM (Disk on Module) power connector support
TPM
  • 1 TPM Header
Expansion Slots
PCIe
  • 1 PCIe 3.0 x4,
  • 1 PCIe 3.0 x1,
  • 2 PCIex16 slots are running at NA/16, or 8/8
  • 1 - 5V PCI 32bit
M.2
  • M.2 Interface: 2 PCIe 3.0 x4
  • Form Factor: 2242/2260/2280/22110
  • Key: M-Key
System BIOS
BIOS Type
  • 128MB UEFI
Management
Software
  • SuperDoctor® 5, AMT, vPro, Watchdog
System Management Software
  • SuperDoctor 5
Power Configurations
  • Power-on mode for AC power recovery, ACPI Power Management, ATX Power connector, Keyboard Wakeup from Soft-Off
PC Health Monitoring
Voltage
  • VBAT, Monitors CPU voltages, Chipset Voltage, Chassis intrusion header, 5 -fan status, +5V standby, +5V, +3.3V, +12V, +1.8V, Memory Voltages
LED
  • Standby alert LED
FAN
  • PWM fan speed control
  • Low noise fan speed control
  • Fan speed control
  • 5 fans with tachometer status monitoring
Other Features
  • WOL, RoHS, Control of power-on for recovery from AC power loss, Chassis intrusion header, Chassis intrusion detection, ATX Power connector, 8-pin 12v DC power connector
Operating Environment
Operating Temperature Range
  • 0°C - 50°C (32°F - 122°F)
Non-Operating Temperature Range
  • -20°C - 60°C (-4°F - 140°F)
