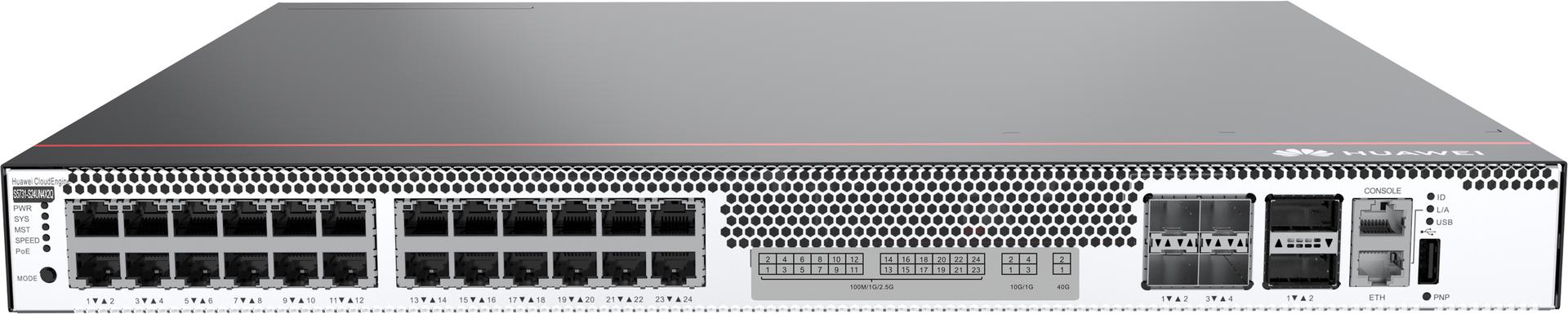

S5731-S24UN4X2Q
Vraag offerte aan voor prijsinformatie
Huawei Product ID: 02354VCC
Hulp Nodig? Contacteer onze experts
Beschikbaar van maandag tot vrijdag, 09:00 - 17:30 uur
| Product Model | CloudEngine S5731-S24N4X2Q-A | CloudEngine S5731-S24UN4X2Q | CloudEngine S5731-S8UM16UN2Q |
| Forwarding Performance | 125 Mpps | 125 Mpps | 125 Mpps |
| Switching Capacity2 | 360 Gbps/672 Gbps | 360 Gbps/672 Gbps | 400 Gbps/672 Gbps |
| Fixed Ports | 24 × 1G/2.5G Base-T Ethernet ports,4 x 10GE SFP+,2 x 40GE QSFP ports | 24 × 1G/2.5G Base-T Ethernet ports,4 x 10GE SFP+,2 x 40GE QSFP ports | 8 × 100M/1G/2.5G/5G/10G,16 × 100M/1G/2.5G Ethernet ports, 2 × 40GE QSFP ports |
| PoE++ | NA | Supported 90W PoE++ | |
| MAC Features | 64,000 MAC entries MAC address learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses | ||
| VLAN Features | 4094 VLANs Guest VLAN, voice VLAN GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports 1:1 and N:1 VLAN mapping | ||
| SVF | Plug-and-play SVF client Automatic software and patch loading to clients One-click and automatic delivery of service configurations Independent client operations | ||
| VXLAN | VXLAN L2 and L3 gateways Centralized and distributed gateways BGP-EVPN Configured through the NETCONF protocol | ||
| Interoperability | VBST (compatible with PVST/PVST+/RPVST) LNP (similar to DTP) VCMP (similar to VTP) For detailed interoperability certifications and test reports, click HERE. | ||
Huawei Product ID: 02354VBU
S5732-H48UM4Y2CZ-V2 2.5G bundle (48*100M/1/2.5G Ethernet ports, optional RTU upgrade to 5/10G, 4*25G SFP28 ports, 2*100G QSFP28 ports, 1*expansion slot, PoE++, without power module)
Network Switches
Huawei Product ID: 02354VCD

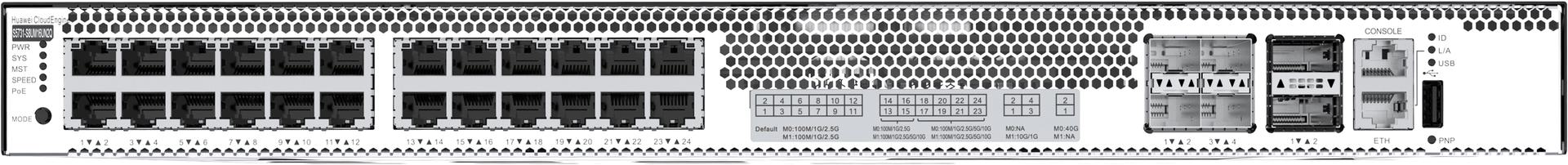

S5731-S8UM16UN2Q (8*100M/1/2.5/5/10G,16*100M/1/2.5G ports, 2*40GE QSFP ports or 12*100M/1/2.5/5/10G,12*100M/1/2.5G ports, 4*10GE SFP+ ports, PoE++, without power module)
Network Switches
Huawei Product ID: 02354VCM
S5732-H24UM4Y2CZ-V2 2.5G bundle (24*100M/1/2.5G Ethernet ports, optional RTU upgrade to 5/10G, 4*25G SFP28 ports, 2*100G QSFP28 ports, 1*expansion slot, PoE++, without power module)
Network Switches
Huawei Product ID: 02355NEA
S5755-H24UTM4X4Y2C (12*10/100/1000BASE-T ports, 12*100M/1/2.5/5/10GBASE-T ports, 4*10GE SFP+ ports, 4*25GE SFP28 ports, 2*100GE QSFP28 ports, PoE++, without power module)
Network Switches
Huawei Product ID: 02355NEB
S5755-H48UTM4X4Y2C (36*10/100/1000BASE-T ports, 12*100M/1/2.5/5/10GBASE-T ports, 4*10GE SFP+ ports, 4*25GE SFP28 ports, 2*100GE QSFP28 ports, PoE++, without power module)
Network Switches
Huawei Product ID: 02355NEG

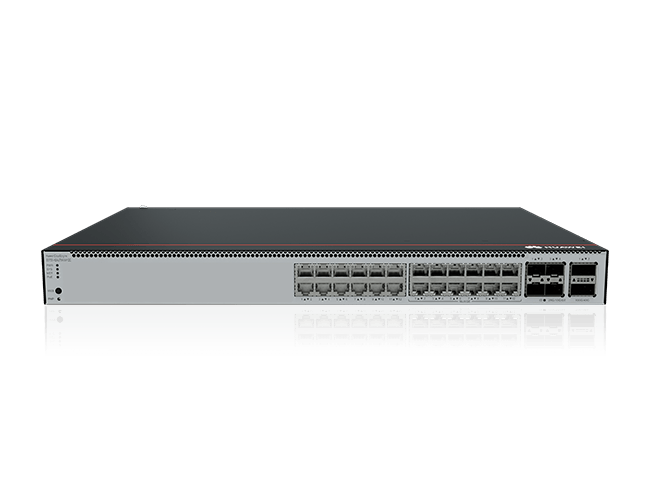

S5755-H24UN4Y2CZ (24*10/100/1000/2.5GBASE-T ports, 4*25GE SFP28 ports, 2*100GE QSFP28 ports, expansion card slot, PoE++, without power module)
Network Switches
Huawei Product ID: 02355NEH

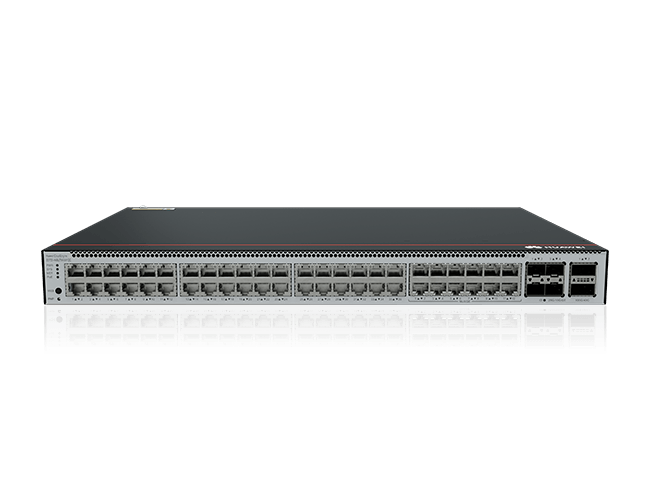

S5755-H48UN4Y2CZ (48*10/100/1000/2.5GBASE-T ports, 4*25GE SFP28 ports, 2*100GE QSFP28 ports, expansion card slot, PoE++, without power module)
Network Switches
