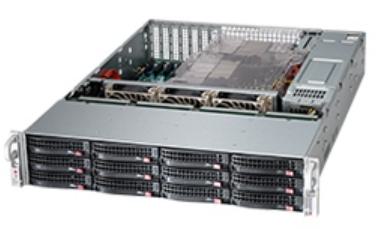

Chassis CSE-826BE1C4-R1K23LPB
2U - 1000W/1200W/1200W - 80 Plus Titanium
Loading price...
Loading price...
In Stock
Supermicro Product ID: CSE-826BE1C4-R1K23LPB
Loading Specifications...
Specifications
Key Features
| ||||
| Form Factor | ||||
| ||||
| Processor Support | ||||
| ||||
| Dimensions | ||||
| Height |
| |||
| Width |
| |||
| Depth |
| |||
| Gross Weight |
| |||
| Net Weight |
| |||
| Packaging (W x H x L) |
| |||
| Available Color |
| |||
| Expansion Slots | ||||
| ||||
| Drive Bays | ||||
| ||||
| Backplane | ||||
| ||||
| Front Panel | ||||
| Button |
| |||
| LED |
| |||
| Systems Cooling | ||||
| Fans |
| |||
| System Monitoring | ||||
| ||||
| Operating Environment (System) | ||||
| Operating Temperature Range |
| |||
| Non-Operating Temperature Range |
| |||
| Operating Relative Humidity Range |
| |||
| Non Operating Relative Humidity Range |
| |||
| Power Supply | ||||
| 1U 1200W/1000W Titanium Power Supply W/PMbus W76xL336xH40mm | ||||
| Power Efficiency |
| |||
| Total Output Power and Input |
| |||
| AC Input Frequency |
| |||
| Dimensions (L x W x H) |
| |||
| Output Type |
| |||
| +12V |
| |||
| +5Vsb |
| |||
| Power Distributor |
| |||
| Certification |
| |||
| Regulatory (Power Supply) | ||||
| Power Supply Safety / EMC |
| |||
| Standard Parts List | ||||
| Part Number | Qty | Description | ||
| Air Shroud | MCP-310-29001-0N | 1 | SC825/826/216/213 Intel DP X9,X8 air shroud 13.68x13/12x13 | |
| HD Backplane | BPN-SAS3-826EL1-N4 | 1 | 12-Port 2U Backplane with Expander support up to 8 x 3.5" SAS3/SATA3 HDD/SDD and 4 x SAS3/SATA3/NVMe Storage Devices,HF,RoHS/REACH | |
| Cable(s) | CBL-PWCD-0160-IS | 2 | PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH | |
| Cable(s) | CBL-PWEX-1069 | 3 | PWEX,FAN,1X4/P2.5 TO 1X4/P2.54,30CM,22AWG,5A/pin,RoHS | |
| Part(s) | MCP-120-00115-0N | 7 | Blank LP L-bracket with 4x4 vent holes | |
| Part(s) | MCP-230-82602-0N | 1 | Top cover for SC826B/216B/825B | |
| Part(s) | MCP-290-82605-0V | 1 | 826 handle | |
| Part(s) | MCP-290-82606-0N | 1 | SC826 HDD Backplane Bracket | |
| Fan(s) | FAN-0158L4 | 3 | 80x80x38 mm, 10.5K RPM, Optional Middle Cooling Fan for X10 2U Ultra and HFT Series Servers,RoHS/REACH | |
| Front Panel | FPB-TB826 | 1 | 16 pin Cable Adaptor Board for SC826 | |
| Drive Tray(s) | MCP-220-00075-0B | 12 | Black gen 5.5 hot-swap 3.5" HDD tray | |
| Power Distributor | PDB-PT826-8824 | 1 | PDB with longer 24pin for SC826B | |
| Power Supply & Accessory | PWS-1K23A-1R | 2 | AC-DC 1200W, Titanium Level, Redundancy, 1U, PMBUS 1.2, +12V/+5Vsb, 336x76x40 mm,HF,RoHS/REACH | |
| Mounting Rail(s) | MCP-290-00053-0N | 1 | Rail set, quick/quick, default for 2,3U 17.2"W | |
| Mounting Rail(s) | MCP-290-00060-0N | 1 | Threaded rail adapter default for round hole rack | |
| Rear Window | MCP-240-82608-0N | 1 | 216B/826B LP rear window,RoHS/REACH,PBF | |
| Optional Parts | ||||
 | ||||
| Part Number | Qty | Description | ||
| Front Bezel | MCP-210-82601-0B • | - | Black Front Bezel for 826 chassis | |
| Hard Drive Carrier | MCP-220-00043-0N • | - | 3.5" convert to 2.5" HDD Tray | |
| HDD Kit | MCP-220-82609-0N | - | Rear 2 X 2.5" HDD kit for 826B series chassis (cables & backplane included) | |
| MCP-220-82616-0N • | - | 12G 2.5x2 Drive Kit w/ Status LED (216B/826B/417B/846X/847B | ||
| HDD Tray Converter | MCP-220-00118-0B • | - | Black gen-5.5 tool-less 3.5-to-2.5 converter drive tray,RoHS/REACH | |
| Short Rail | MCP-290-00058-0N • | - | Short rail set, quick release, 19.6"~26.9" Extendable Length | |
| Servers (for CSE-826BE1C4-R1K23LPB) | ||||
| SSG-6029P-E1CR12T | SSG-6029P-E1CR12H | SSG-6029P-E1CR12L | ||
| Motherboard (for CSE-826BE1C4-R1K23LPB) | ||||
| Motherboard Name | ||||
 = Most optimized Chassis for SuperServer Configuration Blue color = Compatible Green color = Global SKU & Compatible Red dot & green color = Optimized + Global SKU | ||||
