Toshiba x ServerDirect
Exceptional partnership ensures that end-users benefit from cutting-edge technologies, robust infrastructure, and reliable performance, ultimately driving efficiency and productivity across various industries.
ServerDirect and Toshiba have formed a powerful alliance that embodies agility, innovation, and excellence. In collaboration, ServerDirect's remarkable agility in swiftly adapting to new processes and circumstances has greatly enriched their partnership. Collaborating to tackle challenges together, they aim to deliver innovative solutions that address the evolving needs of customers. Together, ServerDirect and Toshiba are committed to delivering exceptional server solutions that empower businesses and organizations to thrive in today's digital landscape.
Pioneering Quality and Innovation
Toshiba's unique selling proposition lies in its relentless pursuit of quality and innovation. With a focus on delivering cutting-edge technology solutions that meet the evolving needs of the market, Toshiba sets itself apart by consistently pushing the boundaries of what's possible. Through its value-added services such as research and development, customer support, and strategic partnerships, Toshiba not only benefits the industry by providing reliable and innovative products but also contributes to driving progress and innovation in the broader technology landscape.
Toshiba's Unique Technology Approach
Writing data at the densities required for high-capacity HDDs calls for an advanced, innovative and reliable approach. Toshiba’s MG10 and MG09 series HDDs feature Flux Control Microwave Assisted Magnetic Recording (FC-MAMR) technology - a simple and elegant technique that uses microwave energy to ensure more of the write energy is focused into the platter, achieving an increase in areal density capability (ADC) of up to 20%. Toshiba’s technology uses conventional writing methods while eliminating the drawbacks of other MAMR approaches, allowing MG Series to eventually achieve capacities up to 30 TB and beyond.
Demand More, Get More
The enterprise demands more and with the MG Series you get it. Each member of the series has a workload rating of 550 TB/year, which is around ten times higher than an average desktop hard disk drive. This performance is available at any time of the day or night, as 24/7 operation also comes as standard.
Toshiba Successfully Demonstrates Nearline HDDs with Massive
Capacity of Over 30 Terabytes
Realized with two next-generation large capacity recording technologies: HAMR and MAMR.
Read the full press release here...
Top Quality: Developed with cutting-edge technology and materials designed for durability and reliability.
Innovation: New features and functions that make your life easier and open up new possibilities.
Sustainability: Environmentally friendly processes and materials that protect our planet.
Unlock Power: Toshiba MG Series Enterprise HDDs Explored
DevOps underpins today’s modern IT architecture but what is it, how is implemented and how does it drive faster business delivery? This 6-part series presents exclusive interviews with the pioneers and practitioners of DevOps. Showcasing real-world benefits and unlocking the secrets of faster business delivery.
Toshiba MG10 Series Hard Disk Drive
High Capacity Enterprise Storage
Toshiba’s Enterprise Capacity Hard Drive – MG Series offers formatted capacities as high as 22 TB with interface options including SATA and SAS and delivers 24/7 operation at a workload of 550 TB/year. The MG Series is ideal for enterprise storage array and industrial server and storage systems. It provides the capacity and advanced technologies to meet the special demands of datacenter and cloud-scale infrastructures.
Key Features
Massive Capacity
Up to 22 TB of Conventional Magnetic Recording (CMR) capacity. Available in SATA models with 512e or 4Kn Advanced Format Sector Technology.Enterprise Grade Reliability
Includes Toshiba Persistent Write Cache Technology for Data-Loss Protection in Sudden Power-Loss Events (512e models).Designed for nearline business-critical workloads.Industry Leading Mechanical Design
10-disk design for superior storage density.Toshiba Precision Laser Welding Technology
Seals helium inside the 10-disk mechanics to reduce aerodynamic drag and deliver a lower operational power profile.Lower Total Cost of Ownership (TCO)
Lower operational power profile, providing excellent power efficiency (W/TB) for better TCO.
Specifications
| Specification | Details |
|---|---|
| Available Capacities | 22/20 TB |
| Form Factor | 3.5-inch |
| Buffer Size | 512 MiB |
| Rotation Speed | 7200 rpm |
| Maximum Data Transfer Speed (Sustained) (Typ.) | 268 MiB/s |
| Power Consumption (Idle-A) | SAS: 4.82 W
SATA: 4.35 W |
| MTTF/MTBF (AFR) | 2 500 000 h (0.35%) |
| Weight (Max) | 22 TB: 720g
20 TB: 720g |
Applications
Business critical enterprise server and storage systems with need for capacity
Mainstream enterprise storage arrays (RAID, software defined)
File- and Object-based storage infrastructure
Distributed file systems, Big Data
Cloud- and hyperscale storage systems
Centralized surveillance data storage systems
Tiered Storage Infrastructure Solutions
Designed for nearline business-critical workloads.Workloads and Use-Cases that Benefit from High Capacity per Spindle disk drives
Capacity-Optimized Cloud-scale and Rack-Scale Storage Systems
Compliance Data Archives and Data Life-Cycle Management Storage Systems
Enterprise and cloud archive- and data recovery systems
Data Center Data-Protection and Data Back-up Infrastructure
Designed for your Enterprise Business
The enterprise demands more and with the MG Series you get it. Each Member of the series has a worload of 550 TB per year., which is around ten times highter than an average desktop hard disk drive. This performance is available at any time of the day or night, as 24/7 operation also comes as standard.
Surveillance HDD S300 & S300 Pro
The use of surveillance in our daily live plays more and more a pivotal role, especially as there had been great improvements in camera and recording technologies. Surveillance video cameras can be strategically placed to monitor traffic, business environments, public places and logistics amongst others. The captured data is reliabily stored in data centres and the analyzation of the data through AI can help e.g. to prevent crime or make your home a safer place than ever before.
The HDD line-up for Surveillance - the S300 and S300Pro - are the excellent solution to store and quickly analyze thousand of images. These HDDS are built for the 24/7 enviroment, they provide up 180TB/year workload rating and are scalable up to 64 cameras and have built-in vibration sensors.
CERN and Toshiba Hard Drives
Pushing the boundaries of data processing
How three generations of Toshiba Hard Disk Drives have helped the world’s largest physics lab keep track of the hundreds of terabytes of data that are generated by the LHC experiments every second.

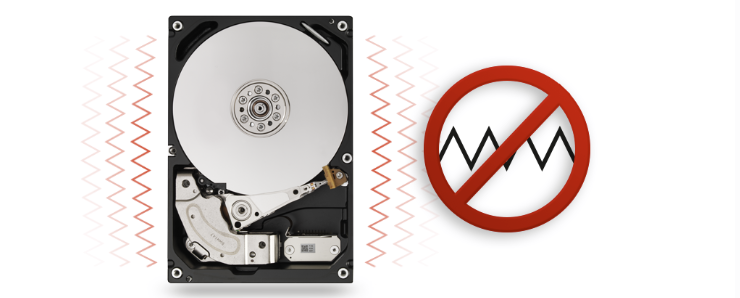

Integrated RV Sensors
Regular hard disk drives can impact the performance of a multi-bay system by generating 'knock-on' vibration. The MG Series ensures high reliability by minimising vibration effects through their advanced control and sensing technology. Multiple sensors detect the slightest shock and built-in RV (Rotational Vibration) sensors compensate for any rotational vibration detected, eliminating the possibility of 'knock-on' vibration in multi-bay server systems.
Keeping your Critical Data Safe
Your data is critical so don't risk it. Toshiba's advanced technologies have been developed to add security and assurance to the enterprise user. With Persistent Write Cache Technology your data is safe in the event of an interruption in power supply during a write to the hard disk. Data is saved in the large flash-based cache and written to the disk when power is restored.
Store More with Flexibility
Enterprise users need flexibility - the MG Series meets this need with a choice of 6 Gbit/s SATA and dual-port 12 Gbit/s SAS interface options as well as block size on demand (512e, 4Kn, 512n). Additionally, there are options for Toshiba hard drives with Self Encrypting technology or with Sanitize Instant Erase (SIE) technology, which means that in an instant all data is erased, without the need for overwriting the drive for hours.
High Storage Density Level
The Conventional Magnetic Recording (CMR) HDDs with capacities of 12TB or higher use a helium-sealed design, providing the power-efficient capacity and storage density needed by cloud-scale and enterprise storage solution providers to achieve their TCO objectives. They also utilise Toshiba Group’s laser welding technology to ensure the helium remains securely sealed inside the drive enclosure. The MG10 Series features a 22 TB 10-disk model, while the MG09 Series features a 18 TB 9-disk model.
Build to Deliver, Designed to Last
Toshiba is renowned the world over for 50 years of leading innovation – and the power behind its range of hard drives is no exception. Designed for high capacity and excellent performance, you can be sure that Toshiba’s wealth of experience in hard drives is at work in your storage system. A 5-year extended warranty is also included with the Enterprise Capacity Hard Drive - MG Series for the ultimate peace of mind.
